Taka Hobby


[click photo to enlarge 按圖放大]

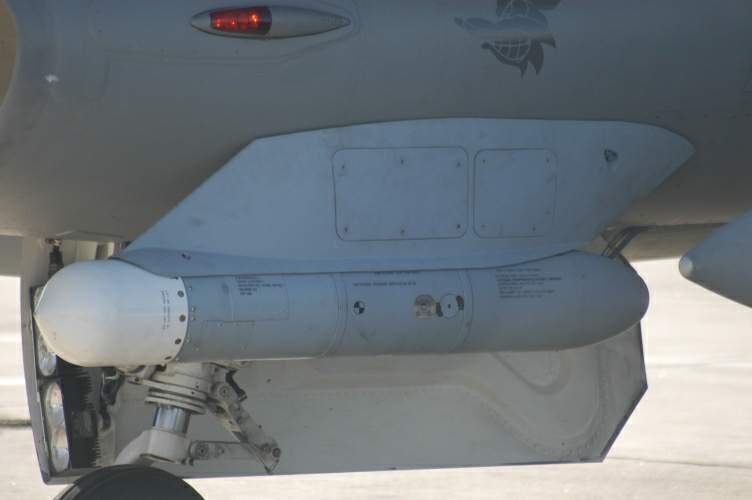

1) AN/ASQ-213 HARM Targeting System (HTS). enables F-16 to track the location of hostile radar systems and engage with AGM-88 HARM (High-speed Anti-Radiation Missile). 反輻射(Anti-Radiation)系統, 即打對家的雷達裝置(主要是防空雷達)
有這個裝置的 F-16C, 就叫 F-16CJ。


[click photo to enlarge 按圖放大]

2) AN/ALQ184 electronic countermeasure (ECM)欺騙(trick & deceive) 對家雷達,免受防空導彈攻擊。

3) 370加侖 外掛油箱。

4) AGM-88 HARM (High-speed Anti-Radiation Missile 高速反輻射導彈),與 AN/ASQ-213 HARM Targeting System (HTS) 一齊用。

5) AIM-9X Sidewinder (響尾蛇) 空對空導彈。原理與響尾蛇相似,靠著身上的紅外線感覺器官找尋獵物。

6) AIM-120C Advanced Medium-Range Air-to-Air Missile (AMRAAM) – 取代 AIM-7 Sparrow (麻雀) medium range missile (MRM) 和 AIM-54 Phoenix (鳳凰) long-range missile (LRM) *[只有已退役的 F-14 Tomcat 能配備AIM-54 Phoenix (鳳凰)]


[click photo to enlarge 按圖放大]

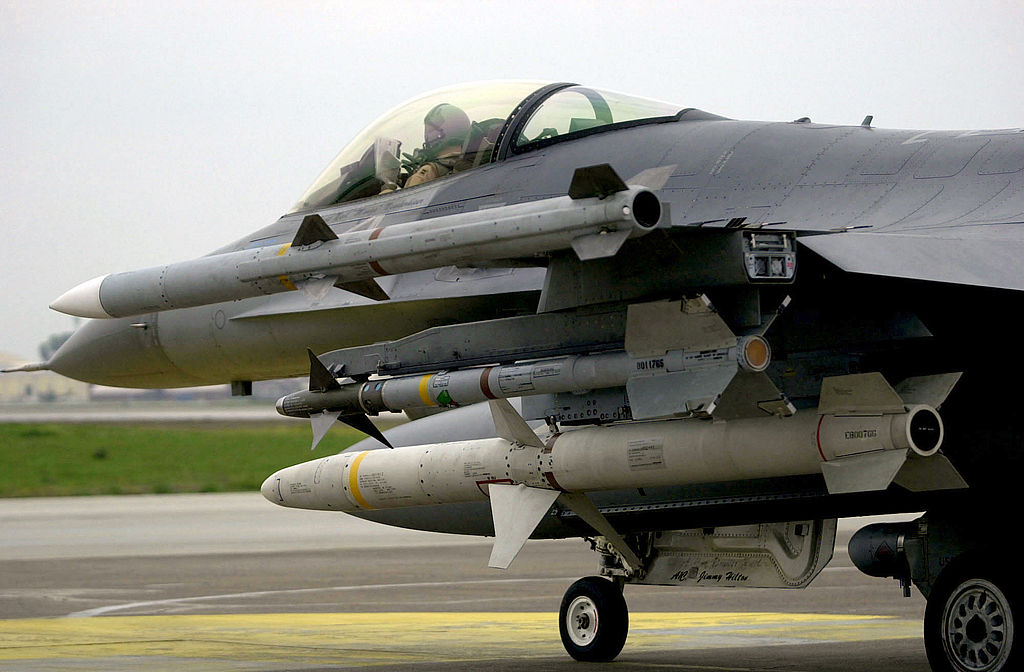

AIM-120C AMRAAM; AIM-9M Sidewinder & AGM-88 HARM

7) WW35th Fighter Wing 的 tail code, 駐日本 三沢飛行場 (Misawa Air Base)。WW 源自 野鼬 (Wild Weasel),越戰到現在, 野鼬 負責壓制敵方防空系統 (Suppression of Enemy Air Defenses - SEAD)


[click photo to enlarge 按圖放大]

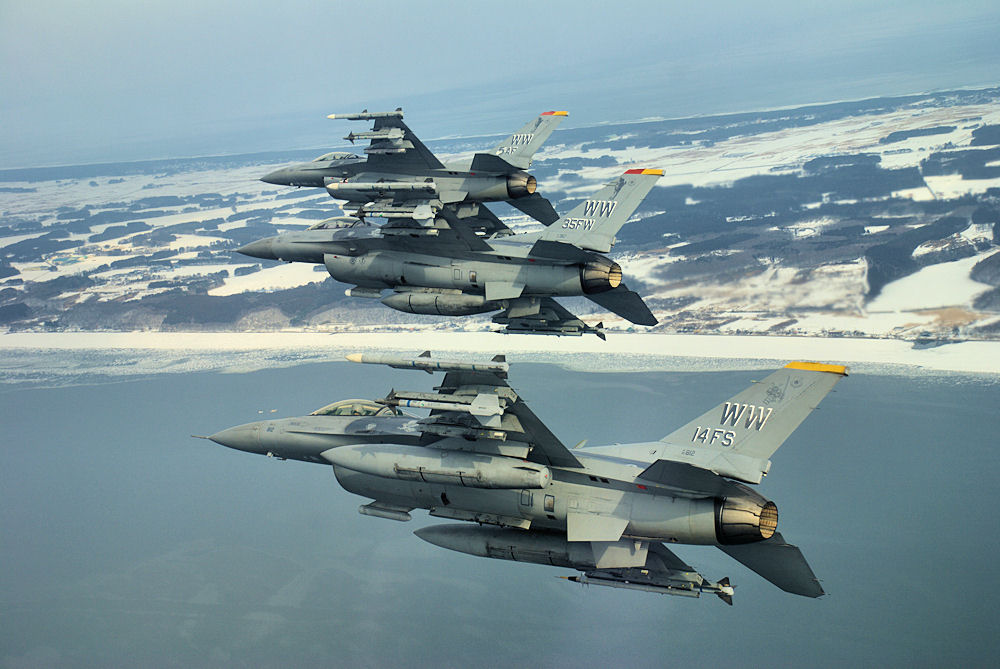

照片最上面的 F-16CJ 應是這盒繪的真實飛機照,第5空軍(Fifth Air Force) 指揮機 (Lt. Gen. Bruce Wright) [模型塗裝2005, 相片2009]
